B088 4 Channels Industrial Weighing Controlling Indicator

Specifications	Technique
Accuracy Class	Class III accuracy
Display	6-bit, 7-segment, red LED display
Status of Display	Gross weight, net weight, dynamic, zero, channel switching, communication status
Key	Function key, peel, peel, reset, switch
A/D Conversion speed	200 times/second
Accept sensitivity	0 to 19 mV/V
Non-linearity & TC	≤0.0015%FS; ≤5ppm /℃
Exciting Voltage	5VDC At most150mA
Input load	4 Load cells 350Ω
Connect type	Four-wire or six-wire
Calibration	Weightcalibration to support long-range calibration
Filter	5 dynamic digital filtering
Serial Port	COM1-RS232/485 MODBUS-RTU
LAN	MODBUS-TCP,PROFINET
Bluetooth	CONNECTMOBILEAPP configuration,calibration,maintenance
Operation temp range	-10～40℃，95%RH
Power Supply	220VAC and 24VDC
Installation	DINStandard Industrial Guide

Features & Applications

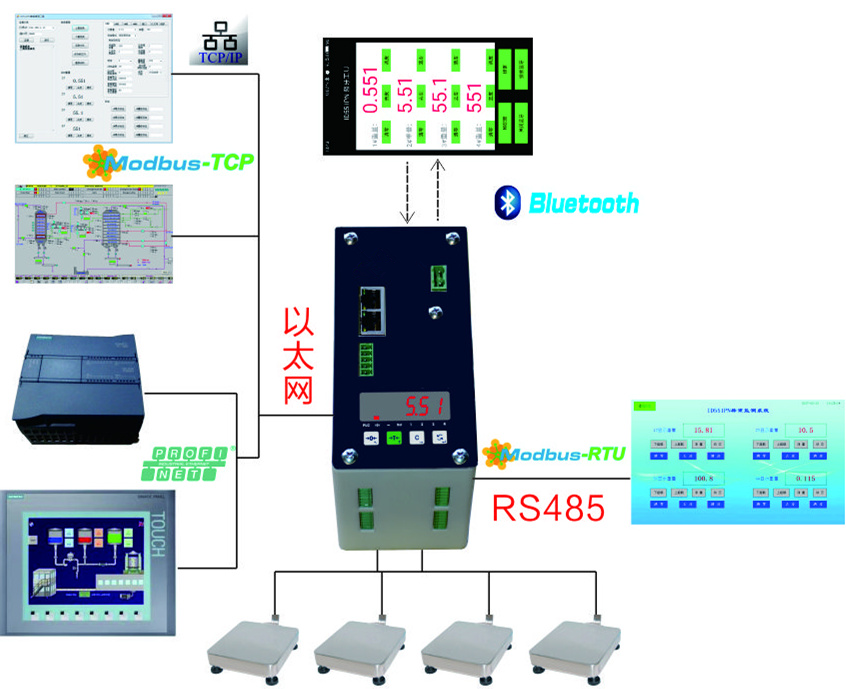

This indicator is an industry weighing controller, high
accuracy, support 1 to 4scales input, and support PROFINET and MODBUS-TCP communication, typical for weighing, batching, filling system work together with PLC or DCS.
1 to 4 scales input, 200HZ ADC speed
100000display division, 6000e CMC approval
One Serial port: RS232/485, 2LAN port
MODBUS-RTU & MODUBS-TCP
PROFINET for Siemens, TCP Report weight
Mobile APP Configure and Calibration
PC tool Configure and Calibration
Standard industrial rail mounting (DIN)
