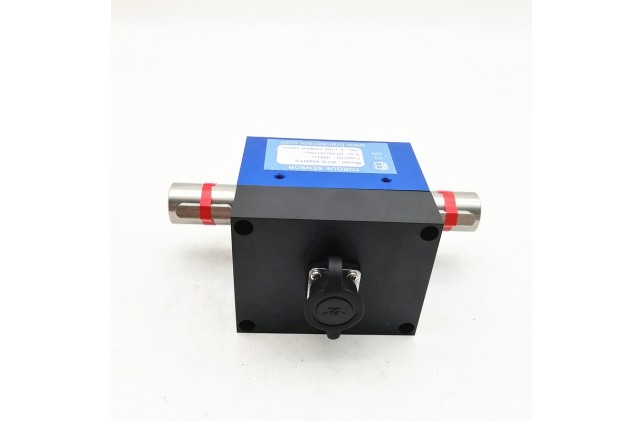

Non-Contact Shaft to Shaft Torque Sensor for Engine Motor Test 0-500nm (BTQ-408RTS)

Specifications  Technique
Capacity/Range 0-0.1,0.2,0.3,0.5,1,2,3,5 Nm
10,20,30,50,100,200,500 Nm
Rated output 5～15Khz、4～20mA、1～5V、0-10V（optional）
System accuracy ±0.1; ±0.3; ±0.5%F.S
Zero balance 0～±1%F.S.
Non-linearity ±0.1%，±0.25%，±0.5%% R.O. （optional）
Hysteresis ±0.2% R.O.
Repeatability 0.05%F.S.
Creep(30min) 0.1%F.S.
Temp.effect on output 0.1%F.S./10℃
Temp.effect on zero 0.1%F.S./10℃
Input impedance 700±10/350±10Ω
Output impedance 700±10/350±10Ω
Insulation ≥2000MΩ/100VDC
Recommended excitation 15-24VDC
Compensated temp range -20~60℃
Operation temp range -35~80℃
Safe overload 120%F.S.
Ultimate overload 200%F.S.
Cable size Φ5×3000mm（option）
Material Stainless steel/Alloy Steel
DOWN LOAD
INQUIRE

Product Description

  1. Name: Shaft rotary torque force sensor (BTQ-408RTS)

  2. Type: BTQ-408RTS Series

  3. Capacity: 0-0.1,0.2,0.3,0.5,1,2,3,5Nm  10,20,30,50,100,200,500 Nm

  4. Material: Stainless steel or alloy steel

  5. Features:

 Made of Stainless Steel/Alloy Steel，Strong stability

 Various range of capacity from mini-capacity to big capacity

Easily integrates into OEM applications

Non contact Shaft to shaft rotary type

Designed for Torque auditing

Uses strain gauge technology

Rotary torque measurements mainly used for packing scales,hopper scale and industrial measuring system

6. datasheet: see below

Specifications  Technique
Capacity/Range 0-0.1,0.2,0.3,0.5,1,2,3,5 Nm
10,20,30,50,100,200,500 Nm
Rated output 5～15Khz、4～20mA、1～5V、0-10V（optional）
System accuracy ±0.1; ±0.3; ±0.5%F.S
Zero balance 0～±1%F.S.
Non-linearity ±0.1%，±0.25%，±0.5%% R.O. （optional）
Hysteresis ±0.2% R.O.
Repeatability 0.05%F.S.
Creep(30min) 0.1%F.S.
Temp.effect on output 0.1%F.S./10℃
Temp.effect on zero 0.1%F.S./10℃
Input impedance 700±10/350±10Ω
Output impedance 700±10/350±10Ω
Insulation ≥2000MΩ/100VDC
Recommended excitation 15-24VDC
Compensated temp range -20~60℃
Operation temp range -35~80℃
Safe overload 120%F.S.
Ultimate overload 200%F.S.
Cable size Φ5×3000mm（option）
Material Stainless steel/Alloy Steel
