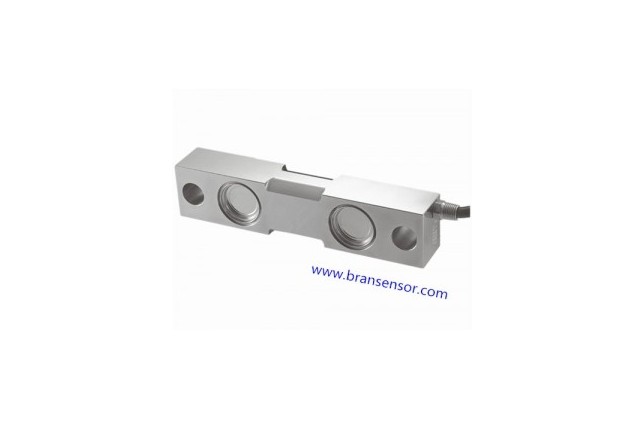

Name: High Accuracy Bridge Load Cells Double Ended Shear Beam Load Cells

Type: B713

Capacity: 1-5,10-25,35,50,75Klb

Material: High quality stainless steel or alloy steel

Instruction:

Double Ended Shear Beam Load Cell is constructed from high grade tool steel for resistance to heavy shock loads associated with truck weighing. It is electroless nickel plated for corossion resistance.

A high accuracy load cell/mounting accessory combination for large silo, tank, hopper or vessel weighing.  It is an excellent solution for most high capacity applications, whether in harsh wash-down environments or hazardous areaswhere there is a risk of explosion.

The double shear beam load cell is manufactured from high strength stainless steel or alloy steel and available in capacities from 10,000kg to 50,000kg.  Formore than 20 years, it has been known worldwide as a leading load cell for high capacity weighing, thanks in part to its fully welded and hermetically sealed design, giving protection to IP68.

Key Features:

This cell is designed to load from Unique floating bearing structure,self-resetting and certering, Easy to install

It is offered with full mounting assembly for easy installation.

Trusted design for more than 20 years

Resistant to off-axis loading

Low profile design with substantial lift-off protection

Capacity range1Klb to 75Klb

Fully welded and hermetically sealed stainless steel load cell, protected to IP68
