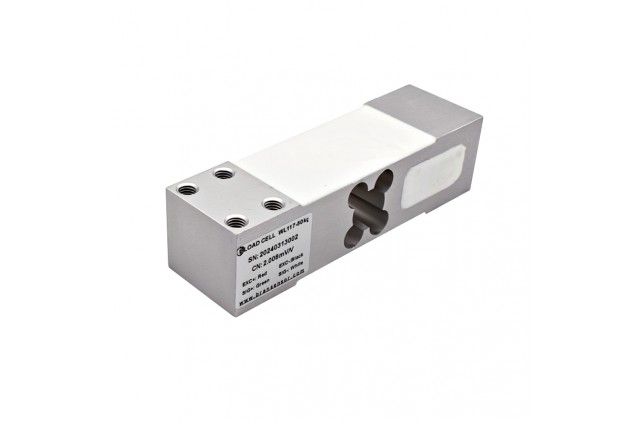

50kg~500kg Electronic Scales IP 67 C3 Single Point Load Cell WL-117

Features & Applications:

1. Single point load cell

2. Made of Aluminum alloy

3. Maximum capacities loads 50kg...500kg

4. High precision C3/C4 optional

5. With Max. platform size up to 600mm*600mm

6. Mainly used for weighing and metring in the food, packaging and chemical industries as well as in trade and agriculture. Also used for production systems such as intelligent warehousing, belt

scales as well as canning.

Specifications:

Specifications	Technique
Capacity	50,80,100,150,200,250,300,350,400,500kg
Rated output	2.0±10%mV/V
Zero balance	±0.02mV/V
Non-linearity	0.0166%F.S.
Hysteresis	0.0166%F.S.
Repeatability	0.02%F.S.
Creep(30min)	0.017%F.S.
Temp.effect on output	0.017%F.S./10℃
Temp.effect on zero	0.02%F.S./10℃
Input impedance	420±20Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~15V
Maximum excitation	15V
Compensated temp range	-10~40℃
Operation temp range	-10~50℃
Safe overload	150%F.S.
Ultimate overload	300%F.S.
Material	Aluminum alloy
IP Class	IP67

DOWN LOAD

INQUIRE

Product Description

Features & Applications:

1. Single point load cell

2. Made of Aluminum alloy

3. Maximum capacities loads 50kg...500kg

4. High precision C3/C4 optional

5. With Max. platform size up to 600mm*600mm

6. Mainly used for weighing and metring in the food, packaging and chemical industries as well as in trade and agriculture. Also used for production systems such as intelligent warehousing, belt

scales as well as canning.

Specifications:

Specifications	Technique
Capacity	50,80,100,150,200,250,300,350,400,500kg
Rated output	2.0±10%mV/V
Zero balance	±0.02mV/V
Non-linearity	0.0166%F.S.
Hysteresis	0.0166%F.S.
Repeatability	0.02%F.S.
Creep(30min)	0.017%F.S.
Temp.effect on output	0.017%F.S./10℃
Temp.effect on zero	0.02%F.S./10℃
Input impedance	420±20Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~15V
Maximum excitation	15V
Compensated temp range	-10~40℃
Operation temp range	-10~50℃
Safe overload	150%F.S.
Ultimate overload	300%F.S.
Material	Aluminum alloy
IP Class	IP67
