Features & Applications:

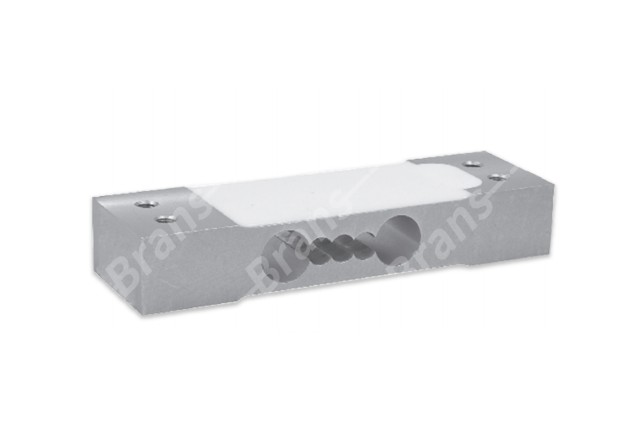

1. Single point load cell
2. Made of Aluminum alloy
3. Maximum capacities loads 35kg...50kg
4. High precision with Max.reference platform size: 250mm*350mm
5. Different cable lengths and other options available
6. Mainly used for small weight range applications,such as batching,filling and production quality control of micro-dispensing metering,medicine,cosmetics,food packaging and other small
packages
Specifications:
Specifications |
Technique |
Capacity |
35~50kg |
Rated output |
2.0±10%mV/V |
Zero balance |
±0.05mV/V |
Non-linearity |
0.017%F.S. |
Hysteresis |
0.017%F.S. |
Repeatability |
0.017%F.S. |
Creep(30min) |
0.017%F.S. |
Temp.effect on output |
0.023%F.S./10℃ |
Temp.effect on zero |
0.023%F.S./10℃ |
Input impedance |
405±5Ω |
Output impedance |
350±3Ω |
Insulation |
≥5000MΩ/100VDC |
Recommended excitation |
10V |
Maximum excitation |
15V |
Compensated temp range |
-10~40℃ |
Operation temp range |
-10~50℃ |
Safe overload |
150%F.S. |
Ultimate overload |
200%F.S. |
Material |
Aluminum alloy |
IP Class |
IP66 |
