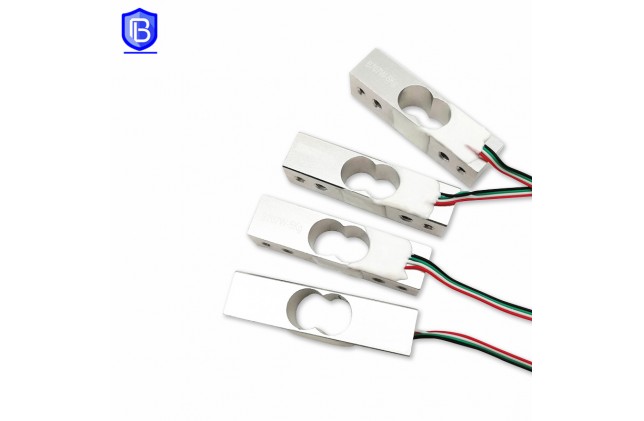

2/5/10/20/50kg Small Single Point Load Cell WL-111

Features & Applications:

1. Single point load cell

2. Made of Aluminum alloy

3. Maximum capacities loads 2kg...50kg

4. High precision,small dimensions,easy installation

5. Different cable lengths and other options available

6. Mainly used for batching,filling and production quality control of micro-dispensing metering,medicine, cosmetics, food packaging and other small packages

Specifications:

Specifications	Technique
Capacity	5,10,20,30,50,100,150kg
Rated output	1.8±10%mV/V
Zero balance	±0.02mV/V
Non-linearity	0.02%F.S.
Hysteresis	0.02%F.S.
Repeatability	0.02%F.S.
Creep(30min)	0.02%F.S.
Temp.effect on output	0.015%F.S./10℃
Temp.effect on zero	0.015%F.S./10℃
Input impedance	380±10Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~15V
Maximum excitation	15V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Aluminum alloy
IP Class	IP65
