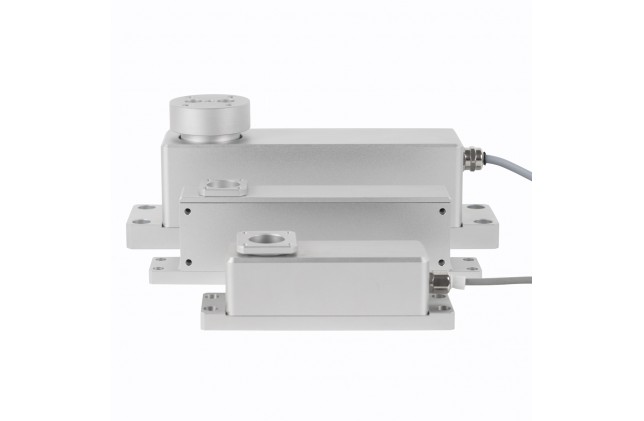

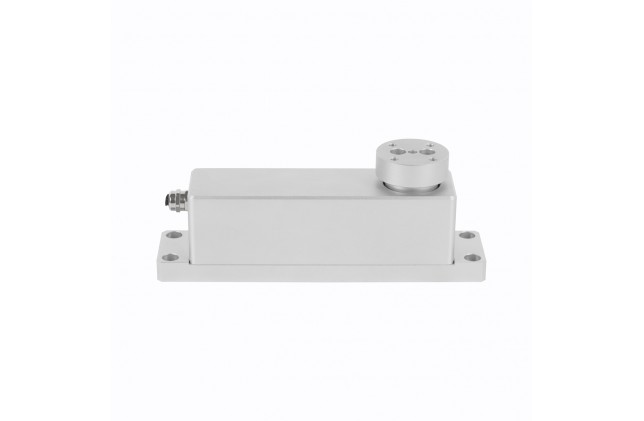

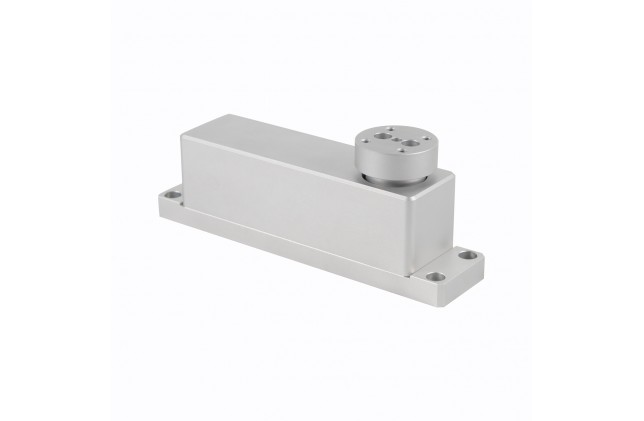

Robust 5/10/20/30/50/100/150kg Box Type Weighing Module WLSM-133

Features & Applications:

1. High precision mg-level weighing module

2. Made of Aluminum alloy

3. Maximum capacities loads 5kg...150kg

4. With integrated overload protection,support dynamic weighing tasks

5. With good consistency of rated output, can be used in parallel with multiple units

6. Mainly used for weighing and metering in the food, packaging and chemical industries as well as in trade and agriculture. Also used for production systems such as intelligent warehouing,belt

scales as well as canning

Specifications:

Specifications	Technique
Capacity	5,10,20,30,50,100,150kg
Rated output	2.0mV/V
Zero balance	±0.05mV/V
Non-linearity	0.018%F.S.
Hysteresis	0.018%F.S.
Repeatability	0.005%F.S.
Creep(30min)	0.01%F.S.
Temp.effect on output	0.005%F.S./10℃
Temp.effect on zero	0.005%F.S./10℃
Input impedance	380±10Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	2~15V
Maximum excitation	15V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Aluminum alloy
IP Class	IP66
