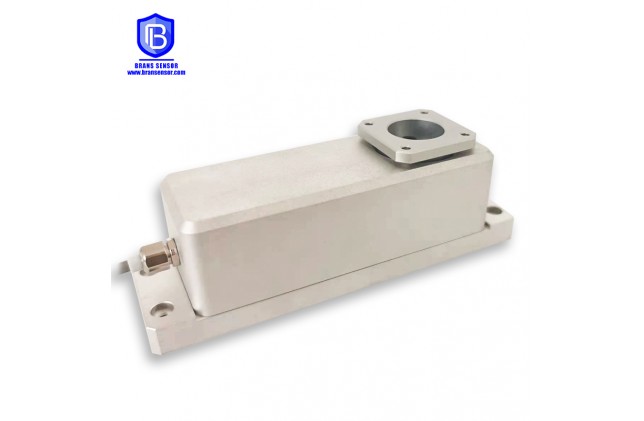

Mg-level High Precision Weighing Module Load Cell 200g/300g/500g/1kg/2kg/5kg WLSM-131

Features & Applications:

1. High precision mg-level weighing module

2. Made of Aluminum alloy

3. Maximum capacilies loads 200g...5kg

4. With integrated overload protection

5. With strong stability, the best chioice for micro-volume high-precision weighing

6. Mainly used for batching,filling and production quality control of micro-dispensing metering,medicine,cosmetics,food packaging and other small packages.

Specifications:

Specifications	Technique
Capacity	200,300,500g 1,2,3,5kg
Rated output	2.0mV/V
Zero balance	±0.05mV/V
Non-linearity	0.01%F.S.
Hysteresis	0.01%F.S.
Repeatability	0.01%F.S.
Creep(30min)	0.01%F.S.
Temp.effect on output	0.01%F.S./10℃
Temp.effect on zero	0.01%F.S./10℃
Input impedance	350±20Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	2~12V
Maximum excitation	15V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Stainless Steel
IP Class	IP54(Customized)

DOWN LOAD

INQUIRE

Product Description

Features & Applications:

1. High precision mg-level weighing module

2. Made of Aluminum alloy

3. Maximum capacilies loads 200g...5kg

4. With integrated overload protection

5. With strong stability, the best chioice for micro-volume high-precision weighing

6. Mainly used for batching,filling and production quality control of micro-dispensing metering,medicine,cosmetics,food packaging and other small packages.

Specifications:

Specifications	Technique
Capacity	200,300,500g 1,2,3,5kg
Rated output	2.0mV/V
Zero balance	±0.05mV/V
Non-linearity	0.01%F.S.
Hysteresis	0.01%F.S.
Repeatability	0.01%F.S.
Creep(30min)	0.01%F.S.
Temp.effect on output	0.01%F.S./10℃
Temp.effect on zero	0.01%F.S./10℃
Input impedance	350±20Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	2~12V
Maximum excitation	15V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Aluminum alloy
IP Class	IP54(Customized)
