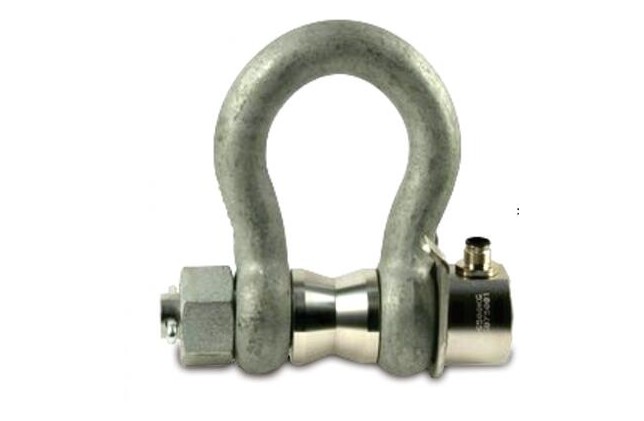

06-T905-Load Pin load cell with high accuracy

Specifications

Technique

Capacity

6.5,12,25,55t

Rated output

1.2~1.5mV/V

Zero balance

±0.03 mV/V

Non-linearity

0.5%F.S.

Hysteresis

0.2%F.S.

Repeatability

0.1%F.S.

Creep(30min)

0.1%F.S.

Temp.effect on output

0.05%F.S./10℃

Temp.effect on zero

0.05%F.S./10℃

Input impedance

780±20Ω

Output impedance

700±10Ω

Insulation

≥5000MΩ/100VDC

Recommended excitation

5~15V

Maximum excitation

20V

Compensated temp range

-10~60℃

Operation temp range

-20~80℃

Safe overload

150%F.S.

Ultimate overload

200%F.S.

Cable size

φ4×4000mm

IP Class

IP67
DOWN LOAD
INQUIRE

Product Description

Cap（t） A B C D E F G H K M
6.5 10 22.5 80 25 22 36 34 33 42 1’’×8 tpi UNC
12 15 31.5 115 35 32 51 41 42 52 1-3/8’’×6 tpi UNC
25 20 46 165 50.8 46 73 54 55 63 2’’×4.5 tpi UNC
55 25 63 235 70 65 105 74 75 88 2-3/4’’×4 tpi UNC

Features & Applications

  1. pin sensor which used together with shackle
  2. Stainless steel or alloy steel material
  3. Small size, easy operation and installation

load direction                                    wiring code
