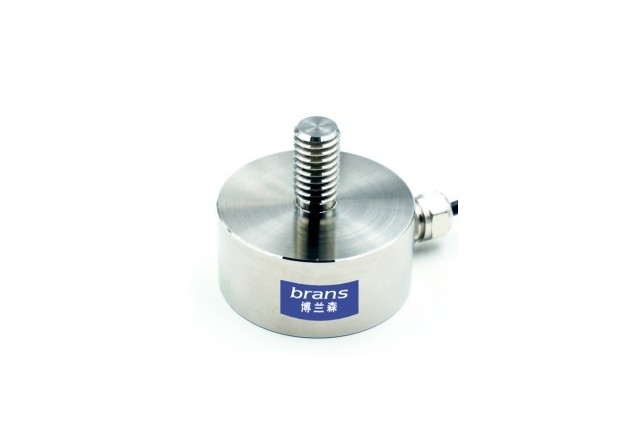

Data AccqusitionBrans’s miniature load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 306 series are the miniature load cells designed to measure both tension and compression load forces from 1 kg up to 2T or 10 N up to 20KN, with high accuracies of 0.5 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads. This design can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please feel free to let us know.
Features
Miniature size as 51mm in diameter and 39mm height
Load range measurements: 1kgs to 2T; 10 N to 20KN; or 2.2046 lb to 440.9 lb
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.5 % full scale
