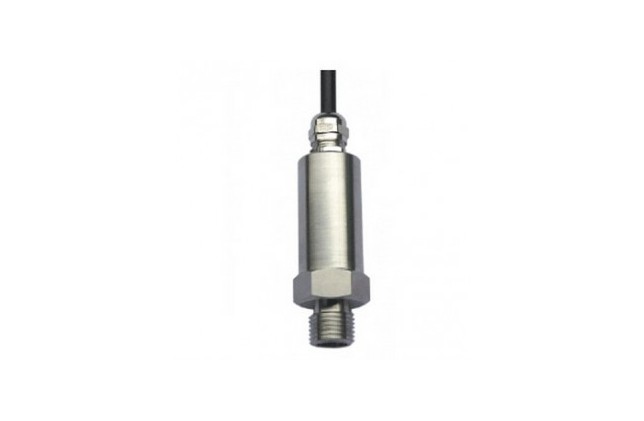

Hot Sales -0.1-100 Mpa Water Gas Pressure Transducer/Transmitter DC 24V Air Compression Pressure Sensor

Specifications	Technique
Capacity	-0.1~0, 0~1, 6, 10~100MPa
2wires	4~20mA
3wires	0~5V,1~5V,0~10V
Comprehensive accuracy	0.1% F.S.、0.25% F.S.、0.5% F.S.
Power supply	24VDC(9~36VDC )
Medium temperature	-20℃~85℃~105℃ （Option）
Ambient temperature	-20℃~85℃
Load resistance	Voltage type≥50kΩ Current type≤800kΩ
Insulation	≥2000MΩ/100VDC
Respone time	＜1ms
IP Class	IP65
Long term stalibity	0.1%F.S./Year
Vibration effects	20~1000HZ＜0.1% F.S. Impact is less than 0.1% F.S.
Electrical interface	Stainless steel seal terminal
Thead connection	M20×1.5,/G1/2-14 /customized
Outline size	M20×Φ26.5×90
Material	Stainless Steel

DOWN LOAD

INQUIRE

Product Description

1. Product Name: Hot Sales -0.1-100 Mpa Water Gas Pressure Transducer/Transmitter DC 24V Air Compression Pressure Sensor

2. Model: BST101

3. Material: Stainless Steel

4. Cpacity: -0.1～0，0-1,6,10～100MPa

5. Size: M20×Φ26.5×90 mm

6. Design:

7. Main Features

(1) Fully Welded Stainless Steel Housing

(2) No Oil Fill, Welds, or Internal O-rings

(3) Wide Operating Temperature

(4) Compatible with Liquids and Gases

(5) Rugged, Compact Design

(6) Pressures up to 10,000 PSI

(7) High Shock and Vibration

8. Technical Datasheet

Specifications	Technique
Capacity	-0.1~0, 0~1, 6, 10~100MPa
2wires	4~20mA
3wires	0~5V,1~5V,0~10V
Comprehensive accuracy	0.1% F.S.、0.25% F.S.、0.5% F.S.
Power supply	24VDC(9~36VDC )
Medium temperature	-20℃~85℃~105℃ （Option）
Ambient temperature	-20℃~85℃
Load resistance	Voltage type≥50kΩ Current type≤800kΩ
Insulation	≥2000MΩ/100VDC
Respone time	＜1ms
IP Class	IP65
Long term stalibity	0.1%F.S./Year
Vibration effects	20~1000HZ＜0.1% F.S. Impact is less than 0.1% F.S.
Electrical interface	Stainless steel seal terminal
Thead connection	M20×1.5,/G1/2-14 /customized
Outline size	M20×Φ26.5×90
Material	Stainless Steel

9.Applications:

(1) Industrial OEM Equipment

(2) Hydraulic Systems

(3) HVAC Equipment

(4) Refrigeration Equipment

(5) Automotive

(6) Energy / Water Management

(7) Test Stands

(1) Off-Road / Construction Equipment

(2) Railways (Braking, Compressor & Engine Controls)

The new compact BST101 pressure transmitter is ideal for monitoring pressure in hydraulics and pneumatics applications as well as inert gases where mounting space is limited. These pressure sensors feature a thin film measuring cell which is welded directly to the process connection. No separate seal is required. This innovative design technology guarantees high accuracy in a compact housing. Constructed of stainless steel, the robust pressure sensors are designed to withstand extreme shock and vibration in harsh environments. The one-piece, completely welded housing eliminates moisture ingress and is rated IP 67 / IP 69K. The transmitter provides an analog output at an exceptional fast response time of 1 millisecond and reliable repeatability of < 0.05 %. Through innovative design technology, features that ensure reliability.
