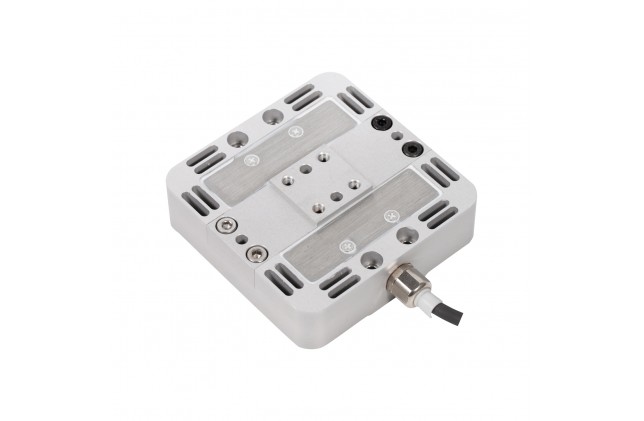

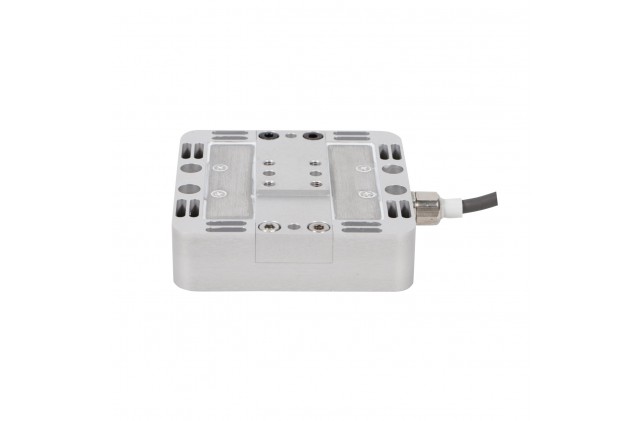

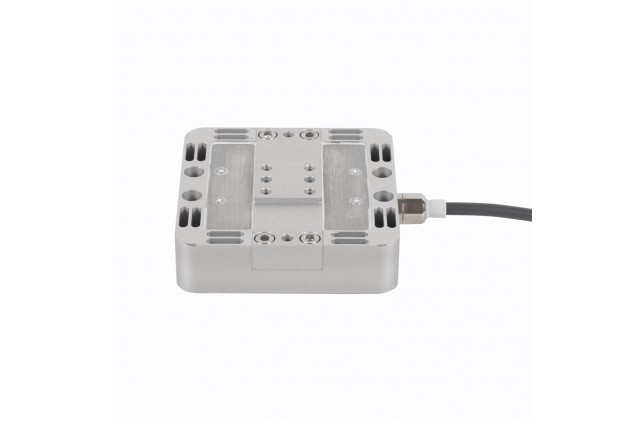

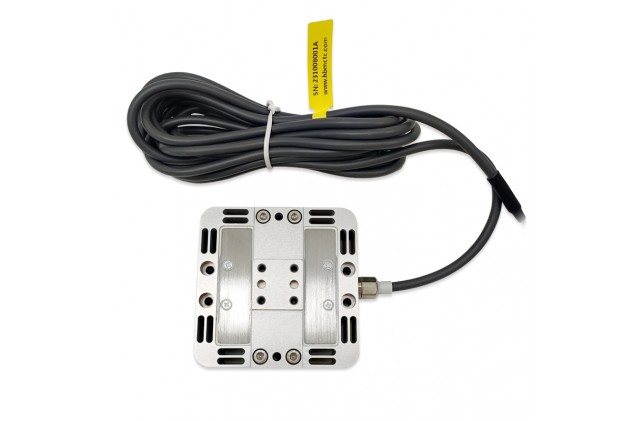

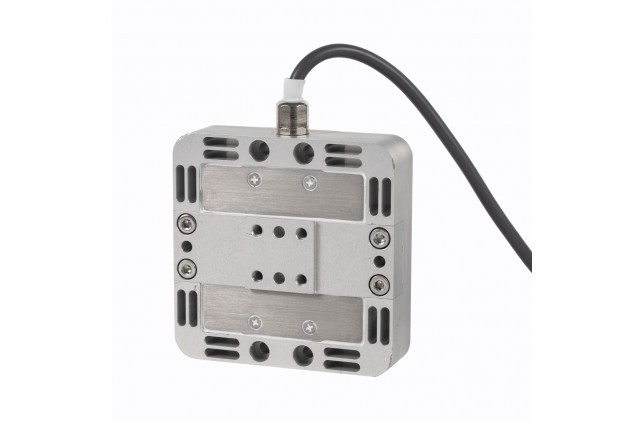

Panel Type Tri-Axial Force Sensor MF-609

1.Tri-Axial force sensor offers an excellent solution for measuring Fx, Fy, and Fz loads
2.High accuracy with strong ability of anti-side force
3.Compact structure, low profile, easy to install
4.Different cable lengths, dimensions, capacities, accessories and other options available
5.Used for precision control of mechanical arm, grinding and polishing for spherical, carved processing of machining center, precision testing of medical equipment

Specifications	Technique
Capacity（N）	Fx=Fy=Fz: 50/100/200/500/1000N
Rated output	1.0±10%mV/V
Zero balance	±0.1mV/V
Non-linearity	0.1%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.05%F.S.
Interference error	≤0.5%F.S.
Creep(30min)	0.1%F.S.
Temp.effect on output	0.1%F.S./10℃
Temp.effect on zero	0.1%F.S./10℃
Input impedance	350±10Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	2~12V
Maximum excitation	15V
Compensated temp range	-10~40℃
Operation temp range	-20~90℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Aluminum Alloy
IP Class	IP65

DOWN LOAD

INQUIRE

Product Description

Features & Applications:

1. Tri-Axial force sensor offers an excellent solution for measuring Fx, Fy, and Fz loads

2. High accuracy with strong ability of anti-side force

3. Compact structure, low profile, easy to install

4. Different cable lengths, dimensions, capacities, accessories and other options available

5. Used for precision control of mechanical arm, grinding and polishing for spherical, carved processing of machining center, precision testing of medical equipment

Specifications:

Specifications	Technique
Capacity（N）	Fx=Fy=Fz: 50/100/200/500/1000N
Rated output	1.0±10%mV/V
Zero balance	±0.1mV/V
Non-linearity	0.1%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.05%F.S.
Interference error	≤0.5%F.S.
Creep(30min)	0.1%F.S.
Temp.effect on output	0.1%F.S./10℃
Temp.effect on zero	0.1%F.S./10℃
Input impedance	350±10Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	2~12V
Maximum excitation	15V
Compensated temp range	-10~40℃
Operation temp range	-20~90℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Aluminum Alloy
IP Class	IP65
