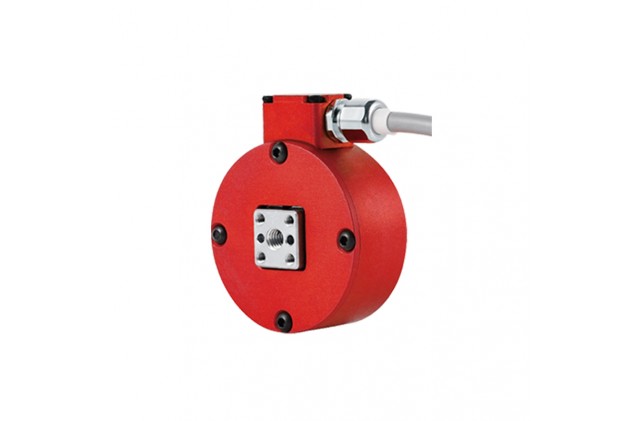

Micro Tri-Axial Force Sensor MF-607

1.Tri-Axial force sensor offers an excellent solution for measuring Fx, Fy, and Fz loads
2.Made of aluminum alloy
3.Compact structure, flange design, easy to install
4.Different cable lengths, dimensions, capacities, accessories and other options available
5.Used for force exertion control in robotics, industrial test benches, actuator operating force measurement and so on

Specifications	Technique
Capacity（N）	Fx=Fy=Fz: 10/20/50/100/200N
Rated output	1.0±0.5mV/V
Zero balance	±0.1mV/V
Non-linearity	0.05%F.S.
Hysteresis	0.05%F.S.
Repeatability	0.05%F.S.
Interference error	≤0.1%F.S.
Creep(30min)	0.05%F.S.
Temp.effect on output	0.1%F.S./10℃
Temp.effect on zero	0.1%F.S./10℃
Input impedance	350±10Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	2~12V
Maximum excitation	15V
Compensated temp range	-10~40℃
Operation temp range	-20~90℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Aluminum Alloy
IP Class	IP65

DOWN LOAD

INQUIRE

Product Description

Features & Applications:

1. Tri-Axial force sensor offers an excellent solution for measuring Fx, Fy, and Fz loads

2. Made of aluminum alloy

3. Compact structure, flange design, easy to install

4. Different cable lengths, dimensions, capacities, accessories and other options available

5. Used for force exertion control in robotics, industrial test benches, actuator operating force measurement and so on

Specifications:

Specifications	Technique
Capacity（N）	Fx=Fy=Fz: 10/20/50/100/200N
Rated output	1.0±0.5mV/V
Zero balance	±0.1mV/V
Non-linearity	0.05%F.S.
Hysteresis	0.05%F.S.
Repeatability	0.05%F.S.
Interference error	≤0.1%F.S.
Creep(30min)	0.05%F.S.
Temp.effect on output	0.1%F.S./10℃
Temp.effect on zero	0.1%F.S./10℃
Input impedance	350±10Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	2~12V
Maximum excitation	15V
Compensated temp range	-10~40℃
Operation temp range	-20~90℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Aluminum Alloy
IP Class	IP65
