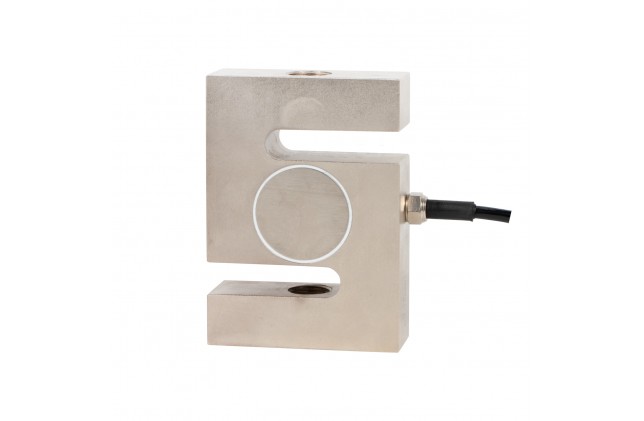

Stainless Steel S-type Tension and Compression Force SensorTCF-705

Features & Applications:

1. S-type tension and compression force sensor

2. Made of alloy steel/stainless steel

3. Maximum capacilies loads 25kg...10000kg

4. Tension and compression application

5. High accuracy with anti-overload protection

6. Mainly used in applications like material testing machines, hanging scales, hopper

weighing and other industrial measuring system

Specifications:

Specifications	Technique
Capacity	25/50/100/200/250/500kg 0.75/1/1.5/2/2.5/5/10t
Rated output	2.0±10%mV/V
Zero balance	±0.05mV/V
Non-linearity	0.03%F.S.
Hysteresis	0.03%F.S.
Repeatability	0.03%F.S.
Creep(30min)	0.024%F.S.
Temp.effect on output	0.02%F.S./10℃
Temp.effect on zero	0.02%F.S./10℃
Input impedance	381±10Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5V
Maximum excitation	15V
Compensated temp range	-10~40℃
Operation temp range	-30~70℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Stainless Steel/Alloy steel
IP Class	IP66
