Features & Applications:

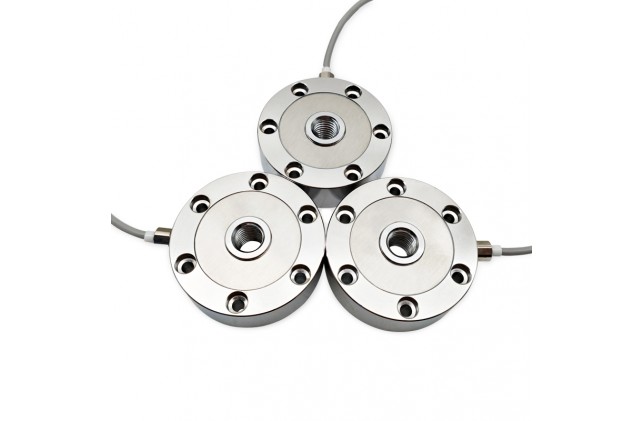

1. Pancake type tension and compression force sensor
2. Made of alloy steel
3. Maximum capacities loads 2kN... 20kN
4. External flange structure, and with M12 threaded hole running through the center of the sensor which can be used to mount attachments such as load buttons,eye bolts or other threaded
assemblies for force loading.
5. Different cable lengths, dimensions, capacities,accessories and other options available
6. Mainly used for in-line force monitoring, injection-molding machines,press machines,material testing equipment,etc
Specifications:
Specifications |
Technique |
Capacity |
2,3,5,10,20kN |
Rated output |
2.0±20%mV/V |
Zero balance |
±0.01mV/V |
Non-linearity |
0.05%F.S. |
Hysteresis |
0.05%F.S. |
Repeatability |
0.03%F.S. |
Creep(30min) |
0.05%F.S. |
Temp.effect on output |
0.03%F.S./10℃ |
Temp.effect on zero |
0.03%F.S./10℃ |
Input impedance |
380±20Ω |
Output impedance |
350±10Ω |
Insulation |
≥5000MΩ/100VDC |
Recommended excitation |
2~12V |
Maximum excitation |
12V |
Compensated temp range |
-10~60℃ |
Operation temp range |
-20~80℃ |
Safe overload |
150%F.S. |
Ultimate overload |
200%F.S. |
Material |
Stainless Steel |
IP Class |
IP67 |
Features & Applications:
1. Pancake type tension and compression force sensor
2. Made of alloy steel
3. Maximum capacities loads 2kN... 20kN
4. External flange structure, and with M12 threaded hole running through the center of the sensor which can be used to mount attachments such as load buttons,eye bolts or other threaded
assemblies for force loading.
5. Different cable lengths, dimensions, capacities,accessories and other options available
6. Mainly used for in-line force monitoring, injection-molding machines,press machines,material testing equipment,etc
Specifications:
Specifications |
Technique |
Capacity |
2,3,5,10,20kN |
Rated output |
2.0±20%mV/V |
Zero balance |
±0.01mV/V |
Non-linearity |
0.05%F.S. |
Hysteresis |
0.05%F.S. |
Repeatability |
0.03%F.S. |
Creep(30min) |
0.05%F.S. |
Temp.effect on output |
0.03%F.S./10℃ |
Temp.effect on zero |
0.03%F.S./10℃ |
Input impedance |
380±20Ω |
Output impedance |
350±10Ω |
Insulation |
≥5000MΩ/100VDC |
Recommended excitation |
2~12V |
Maximum excitation |
12V |
Compensated temp range |
-10~60℃ |
Operation temp range |
-20~80℃ |
Safe overload |
150%F.S. |
Ultimate overload |
200%F.S. |
Material |
Stainless Steel |
IP Class |
IP67 |
