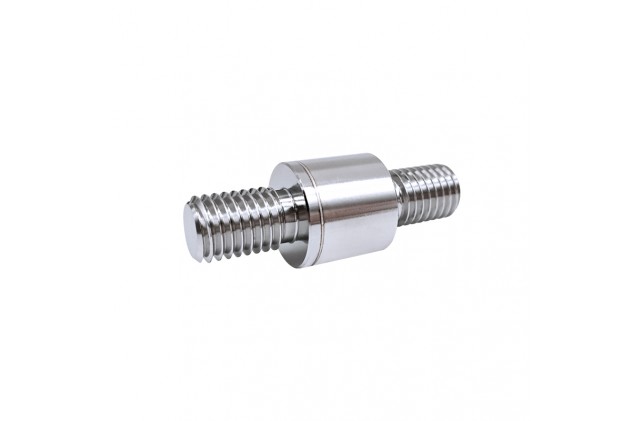

Heavy Duty Rod End in-line Type Tension and Compression Force Fensor TCF-727

Features & Applications:

1. Heavy duty rod end in-line type tension and compression force sensor

2. Made of stainless steel

3. Maximum capacities loads 10kN... 30000kN

4. Compact structure with Double-ended threaded rod.

5. Different cable lengths, dimensions, capacities,accessories and other options available

6. Mainly used in force measurement and control in robot welding, pneumatic actuator,servo press, tool pressing, forming and riveting process, press-fitting sectors,etc

Specifications:

Specifications	Technique
Capacity	10,20,30,50,100,200,300,500kN 1000,2000,3000,5000,10000,20000,30000kN
Rated output	1.5±10%mV/V
Zero balance	±0.05mV/V
Non-linearity	0.1%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.05%F.S.
Creep(30min)	0.1%F.S.
Temp.effect on output	0.1%F.S./10℃
Temp.effect on zero	0.1%F.S./10℃
Input impedance	780±20/385±20Ω
Output impedance	780±10/385±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	2~12V
Maximum excitation	12V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Stainless Steel
IP Class	IP66
