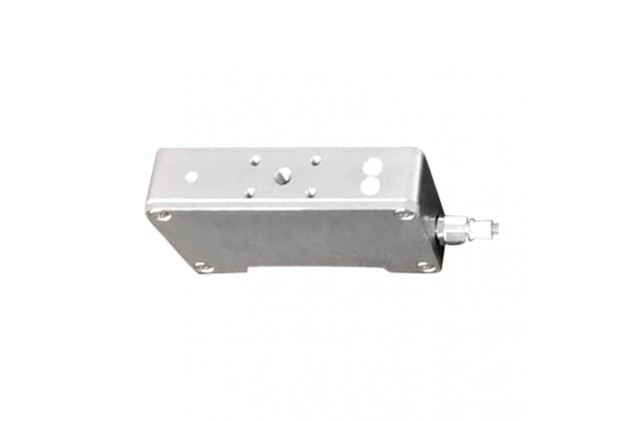

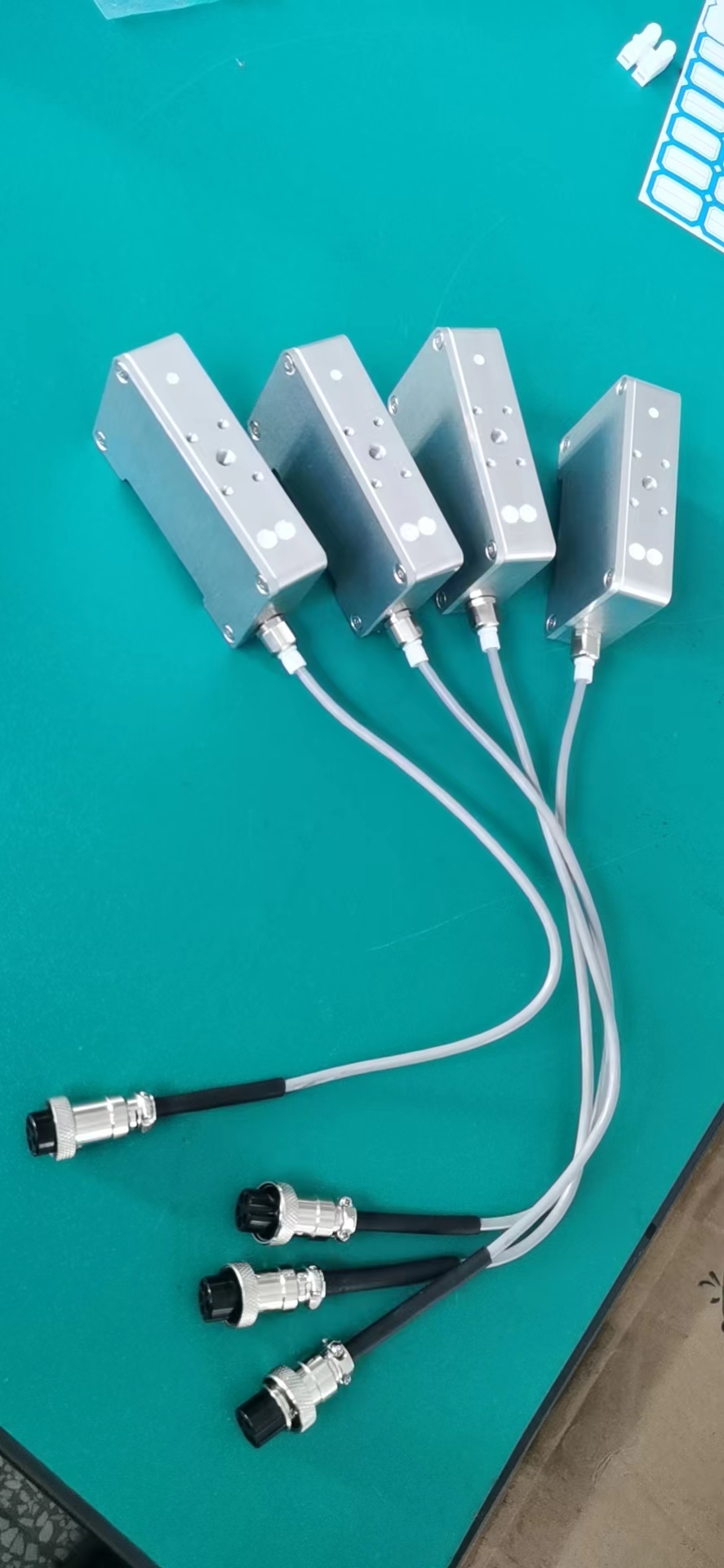

Small Capacity High-precision Tension and Compression Force Sensor TCF-712

Features & Applications:

1. High-precision tension and compression force sensor with small capacity

2. Made of aluminum alloy

3. Maximum capacilies loads 150g... 5000g

4. Tension and compression application

5. High accuracy with anti-overload protection

6. High dynamic response frequency with compact structure

7. Mainly used for a wide variety of high-precision static and

dynamic measurement applications. It measures very precisely even with small

forces and returns extremely reliable results

Specifications:

Specifications	Technique
Capacity	150,250,500,1000,2000,3000,5000g
Rated output	~1.0mV/V
Zero balance	±0.02mV/V
Non-linearity	0.01%F.S.
Hysteresis	0.01%F.S.
Repeatability	0.005%F.S.
Creep(30min)	0.005%F.S.
Temp.effect on output	0.005%F.S./10℃
Temp.effect on zero	0.005%F.S./10℃
Input impedance	380±10Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	2~15V
Maximum excitation	15V
Compensated temp range	-10~60℃
Operation temp range	-30~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Aluminum Alloy
IP Class	IP66
