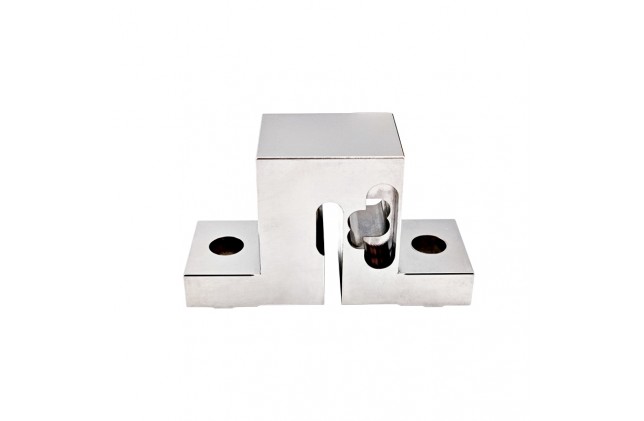

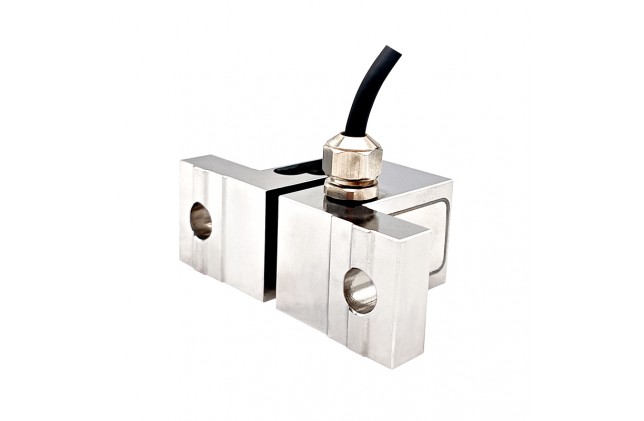

Staineless Steel ±500 μm/m Strain Gain Force Sensor CF-824

Features & Applications:

1. Strain gain force sensor

2. Made of stainless steel

3. Maximum measuring range: ±500 μm/m

4. Compact structure, good stability

5. Low profile,small deflection and high dynamic response frequency

Specifications:

Specifications	Technique
Measuring range(E. M. )	±500 μm/m
Max.extension capacity	±2500 μm/m
Voltage output	0...5V
Standard sensitivily	250 μ m/m/V
Repeatability	±0.2% E.M.
Linearity	±0.5% E.M.
Hysteresis	±0.5% E.M.
Free offset voltage	2.5V
Compensated temp range	-10~50℃
Temp.effect on zero	±0.05% E.M.
Power supply voltage	5V
Protection class	IP68
Material	Stainless Steel
Maximum excitation	15V
Operation temp range	-40~70℃
Cable size	Ø4-5000mm
Standard torque	40mN
Special screws	M8 inox cl 80
Special torque	30(M8 cl-grade 80)mN
