1-20kN Compression Force Sensor CF-815A

Features & Applications:

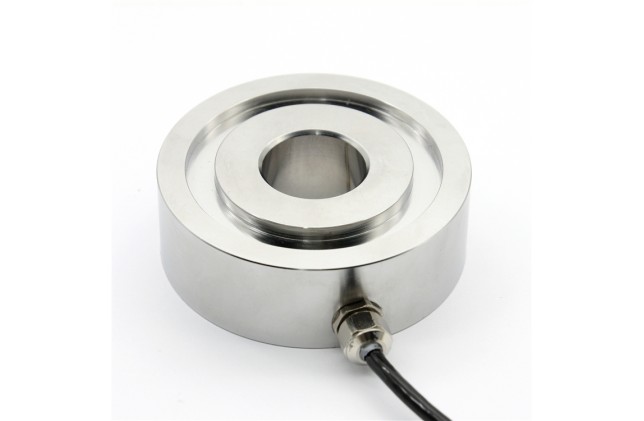

1. Donut thru-hole compression force sensor

2. Made of stainless steel

3. Maximum capacities loads 1...20kN

4. Compact structure, low profile,small deflection, mini dimension

5. Different cable lengths, dimensions, capacities, accessories and other options available

6. Mainly used for measurement applications where the load structure needs to pass through the sensor

Specifications:

Specifications	Technique
Capacity	1/2/5/10/20kN
Rated output	1.5±10%mV/V
Zero balance	±0.02mV/V
Non-linearity	0.2%F.S.
Hysteresis	0.2%F.S.
Repeatability	0.1%F.S.
Creep(30min)	0.2%F.S.
Temp.effect on output	0.1%F.S./10℃
Temp.effect on zero	0.1%F.S./10℃
Input impedance	780±20Ω
Output impedance	700±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~15V
Maximum excitation	15V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	300%F.S.
Material	Stainless Steel
IP Class	IP67

DOWN LOAD

INQUIRE

Product Description

Features & Applications:

1. Donut thru-hole compression force sensor

2. Made of stainless steel

3. Maximum capacities loads 1...20kN

4. Compact structure, low profile,small deflection, mini dimension

5. Different cable lengths, dimensions, capacities, accessories and other options available

6. Mainly used for measurement applications where the load structure needs to pass through the sensor

Specifications:

Specifications	Technique
Capacity	1/2/5/10/20kN
Rated output	1.5±10%mV/V
Zero balance	±0.02mV/V
Non-linearity	0.2%F.S.
Hysteresis	0.2%F.S.
Repeatability	0.1%F.S.
Creep(30min)	0.2%F.S.
Temp.effect on output	0.1%F.S./10℃
Temp.effect on zero	0.1%F.S./10℃
Input impedance	780±20Ω
Output impedance	700±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~15V
Maximum excitation	15V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	300%F.S.
Material	Stainless Steel
IP Class	IP67
