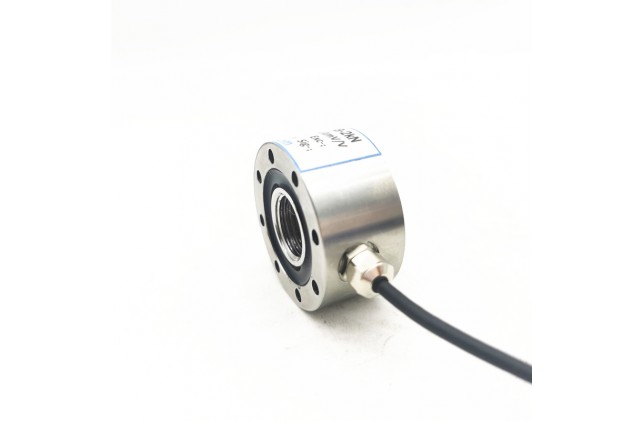

100kg~2000kg Pancake Type Compression Force Sensor CF-809

Features & Applications:

1. Pancake type compression force sensor

2. Made of stainless steel/alloy steel

3. Maximum capacities loads 100kg...2000kg

4. Low profile,small deflection easy

5. High dynamic response frequency

6. Mainly used in automotive fit, automated assembly,3C product testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control systems

Specifications:

Specifications	Technique
Capacity	100/200/1000/2000kg
Rated output	1.5±20%mV/V
Zero balance	±0.03mV/V
Non-linearity	0.25%F.S.
Hysteresis	0.25%F.S.
Repeatability	0.25%F.S.
Creep(30min)	0.25%F.S.
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Input impedance	780±20Ω
Output impedance	700±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~15V
Maximum excitation	15V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Stainless Steel
IP Class	IP66
