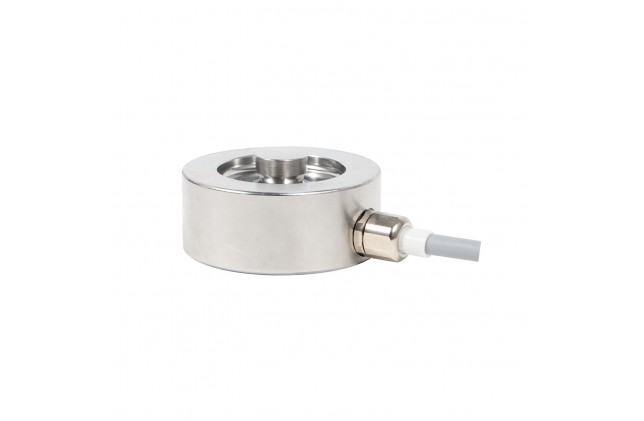

0.5-100kN Button Compression Force Sensor CF-807

Features & Applications:

1. Button type compression force sensor

2. Made of stainless steel

3. Maximum capacities loads 0.5...100kN

4. Compact structure, low profile, easy to install

5. High dynamic response frequency

6. Mainly used in automotive fit, automated assembly,3C product testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control systems

Specifications:

Specifications	Technique
Capacity	0.5/1/2/3/5/10/50/100kN
Rated output	2.0±20%mV/V
Zero balance	±0.05mV/V
Non-linearity	0.1%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.05%F.S.
Creep(30min)	0.1%F.S.
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Input impedance	780±20Ω
Output impedance	700±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	2~12V
Maximum excitation	12V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Material	Stainless Steel
IP Class	IP67

DOWN LOAD

INQUIRE
